SeceuroDoor Insulated Roller Door

Hardened steel insulated 3 phase door

The special ‘full hard’ steel makes this profile especially resistant to damage and reduces deflection. With the option of interior and exterior identical colour coating our insulated shutter can easily be blended into the look of any building yet is also available with a galvanised finish.

Click to enlarge image

The 95mm slat is specially manufactured with CFC free foam infilling the steel double skinned sandwich and makes a very strong curtain with little deflection and no rattling in wind to notice.

This is an insulated roller door but with the strength in the curtain just as important in the decision making. It is an ideal roller door to replace any insulated sliding or sectional type doors.

It is a roller door providing a superb barrier for the external fabric of any insulated building or simply for extra strength in construction.

Make a range for the 2 Seceurodoor 95 roller shutters with the main differences being whether they are face or reveal fitted as well as chain or direct drive motors

Thermal and Acoustic Insulation

Minimal thermal bridges and the use of fine-pored PU rigid foam infill ensure good thermal insulation whilst curtain and sealing technology used around the entire shutter reduce noise from both inside and outside.

• Heat transmission performance for the 95 mm single slat profile 3.9 W/(m2 K)
• Max width 7000 mm
• Max height 7000 mm
• Max area 44 m2.
• Your choice of electric motor
• Choice of 4 guide arrangement options to suit opening structure
• Standard guide angle is 100 mm x 50 mm
• Vision option available: 100 mm x 55 mm Clear Perspex
• Vision Panel with a minimum of 200 mm space in between
• Wind class rating: Class 3

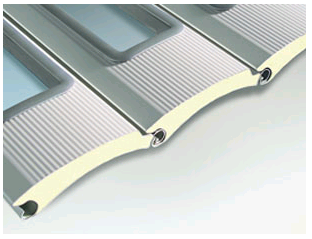

Slat Options

Back to the top

Colour Options

Standard Curtain & Bottom Slat Finish - Galvanised

PLEASE NOTE: Coloured slats may be subject to longer lead times, please get in touch for more info.

PLEASE NOTE: Colour references on standard product are a guide only and will not match powder coated finish.

Back to the top

SeceuroDoor Motor Options

	Safedrive® Fi Turns the SeceuroDoor 95 into a 2-in-1 high speed door & secure roller shutter Built on frequency inverter Direct setting of actual door speed Range of output speeds and torques Horizontal or vertical mounting Safety brake incorporated Low level hand chain operation as standard Plug-connected control equipment Certified to BS EN 12453
	Safedrive® Drive Systems for non counter-balanced Industrial Doors Models from 170 Nm to 1800 Nm High precision worm drive gearbox Range of output speeds and torques Horizontal or vertical mounting Safety brake incorporated Low level hand chain operation as standard Plug-connected control equipment Certified to BS EN 12453
	Ranger 90 & 150 Drive Systems for Industrial Rolling Shutters Range of output speeds and torques Available with either digital or mechanical limits Horizontal or vertical mounting Low level hand chain operation as standard Plug-connected control equipment Certified to BS EN 12453:2001-02

PLEASE NOTE: These doors with a GfA motor as standard

Back to the top

SeceuroDoor Installation Options

We are able to offer four standard variations of guide angle arrangement. The appropriate solution will depend on the structure the product is being fitted to and the application.

Arrangement	Guide angle inset or outset	Universal,-Laser-cut,-Folded-End-Plate
Flag outset	Outset
Flag Inset	Inset
Reveal	Outset
Mixed	Inset/Outset

Typical Direct Drive Exploded Image	Typical Inboard Exploded Image
