Silvelox silvelox slot overlap larch timber overlap trackless garage doors

 The Silvelox Overlap is a trackless sectional garage door made by two overlapping sections and with a double counterweight mechanism. It is the only sectional garage door that has no ceiling tracks and no springs.

The sections are made from 75mm thick panels. The Silvelox Overlap doors are available with different timber stains on various woods:

To view the Silvelox Wood Stain Options for these doors, please click here PDF >

> Brushed Tortora (Turtledove)
> Brushed Naturale (Natural)
> Brushed Black
> Brushed Sabbia (Sand)
> Larch with Pigmented Varnish

 Domestic timber garage doors.

 The Silvelox garage door operator is integrated into the head-bar and does not require sliding bars  or additional space inside the garage.

The Overlap Doors are ordered by OVERALL Width and Height including the outer framework.

> Bottom and perimeter sealing in EPDM rubber anti-entrapment, water and wind proof.
> Outer side varnished with eco-friendly water based products.
> Inner side RAL 9016 Traffic White lacquered.
> Thermal transmittance U - 1 W/m²K (value obtained for a door without windows and grilles with behind wall installation).
> Excellent performance in terms of acoustic insulation and water/wind proofing.

For garage doors with no other access:
Please Note: If your garage door has no other access a compulsory double handle will need to be ordered.

Silvelox Overlap Trackless Sectional Doors Brochure, please click here PDF >

To view the Silvelox Overlap Installation Instructions, please click here PDF >

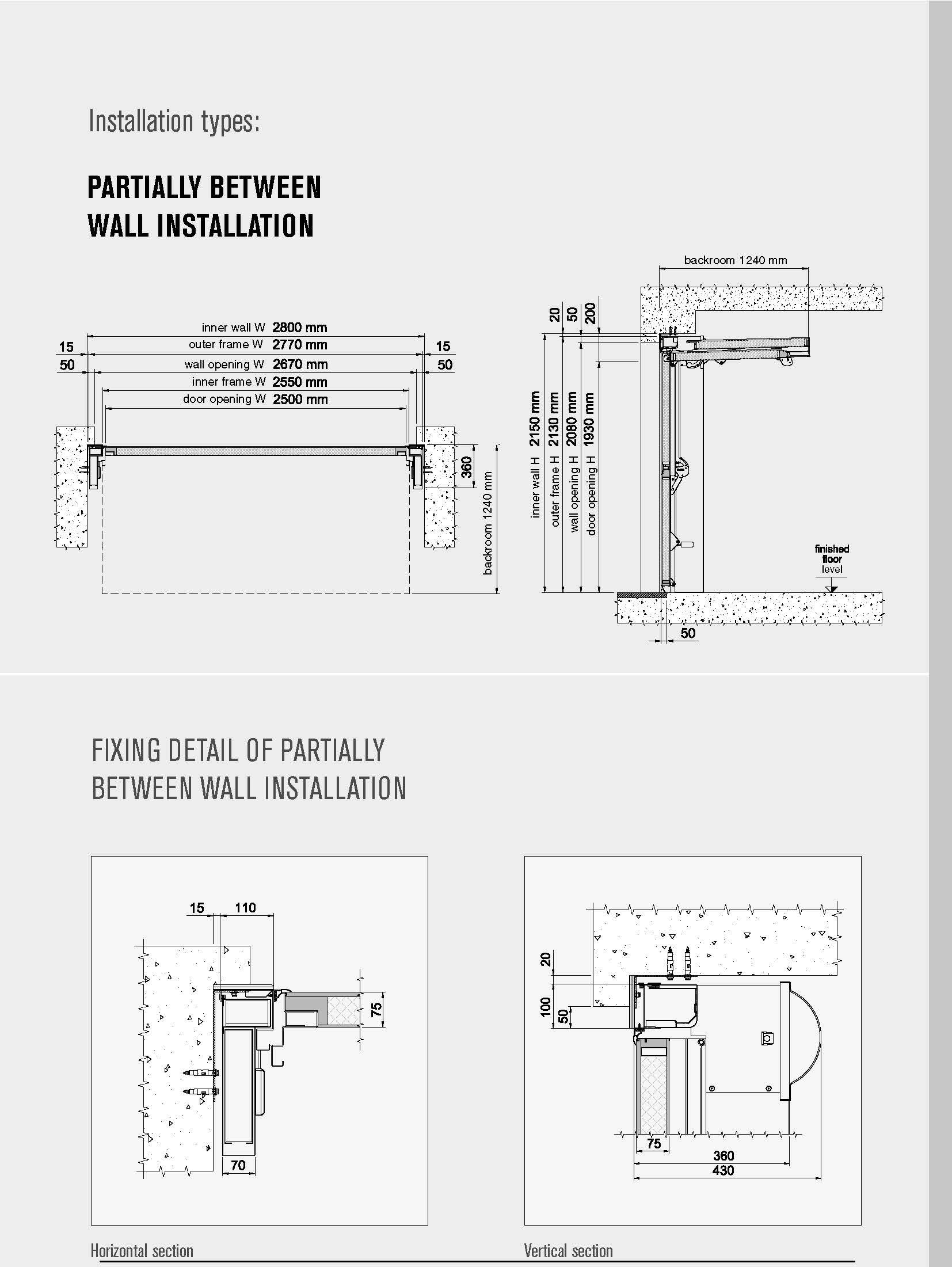

Installation Types:

 10 Years Warranty.

In addition to the 2-year legal warranty, Silvelox supports its customers over time offering them an additional coverage period for a total of:
• 10 years on metal parts
• 5 years on duration of the waterproof film applied to wood components and on the metal coating applied to the door panels (excluded dark colours).

In accordance with the recommendations in the Silvelox sale conditions and in the installation and owner's manual.
